# Azure Active Directory App

Please follow the below steps to create Azure Active Directory (AAD) app:

Step 1 – Login into Azure portal – <https://portal.azure.com/>

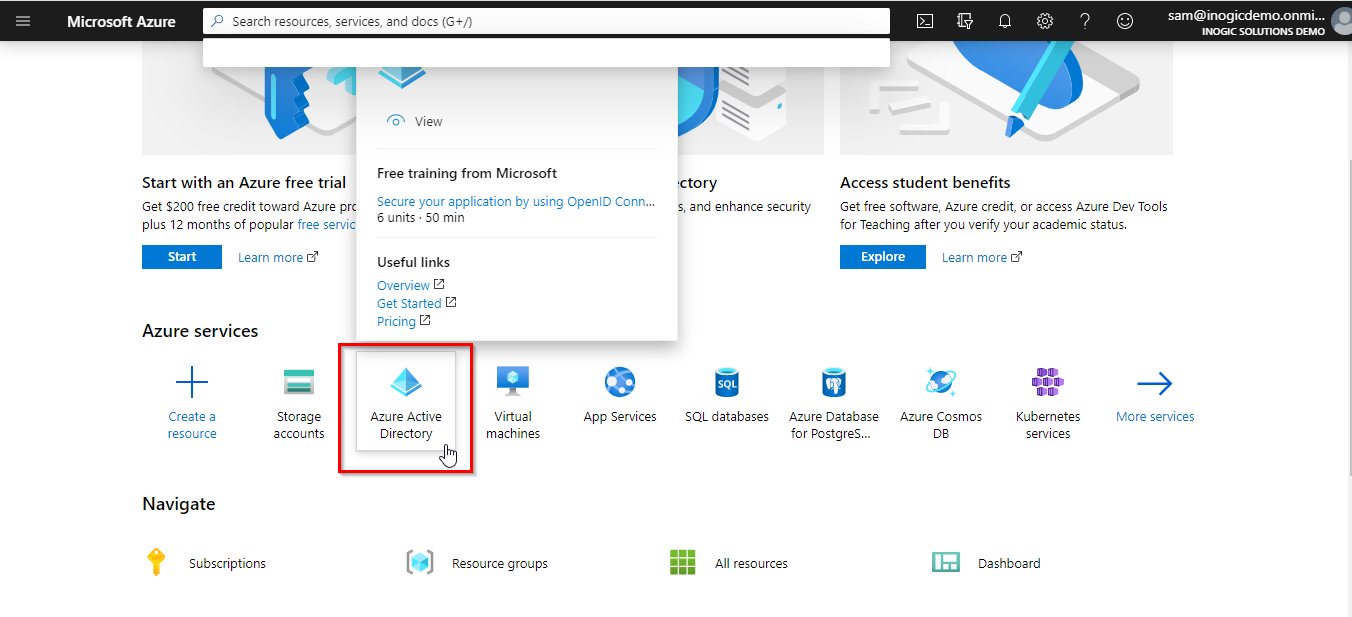

Step 2 – Click on Azure Active Directory.

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image1.png)

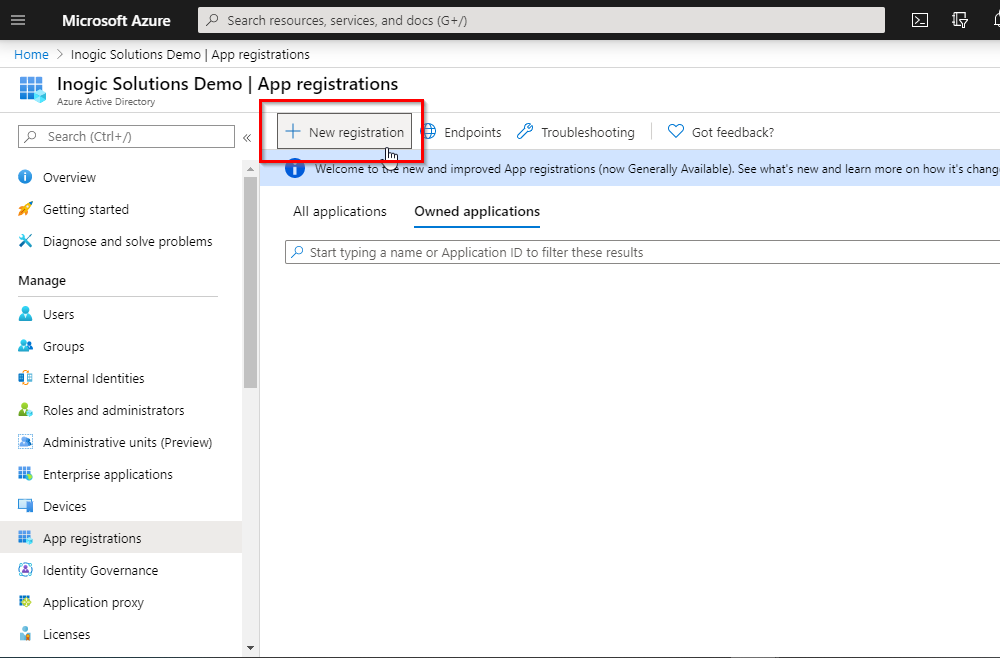

Step 3 – Navigate to App registrations and then click on new registration.

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image2.png)

Display name of app –

If you are going to use this app for Recurring Billing Manager then “Inogic\_RecurringBillingManager”.

Redirect URI should be in below format –

“<https://CRMUrl/WebResources/ikl\\_/SM/html/Callback.html”>

Here CRMUrl is like “<https://octtrial.crm8.dynamics.com”>. After filling these details click on register.

![](/files/thSmDCb0SSJXWVMrygkY)

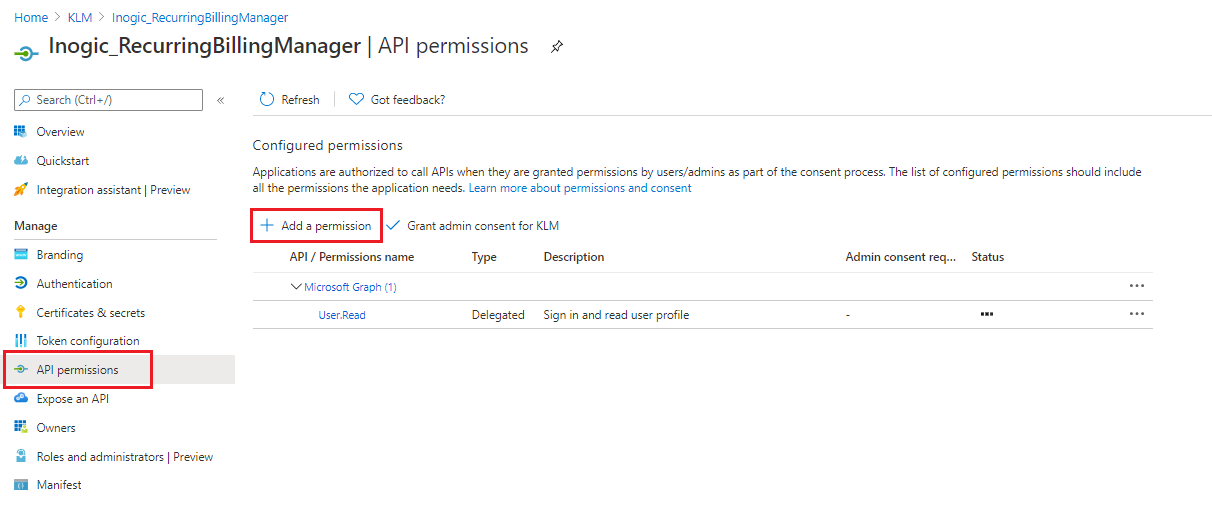

Step 4 – Now you need to give some permissions to app. So navigate to API permissions. Here you need to add permission for Dynamics CRM.

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image4.png)

Please follow below screenshot for add permissions.

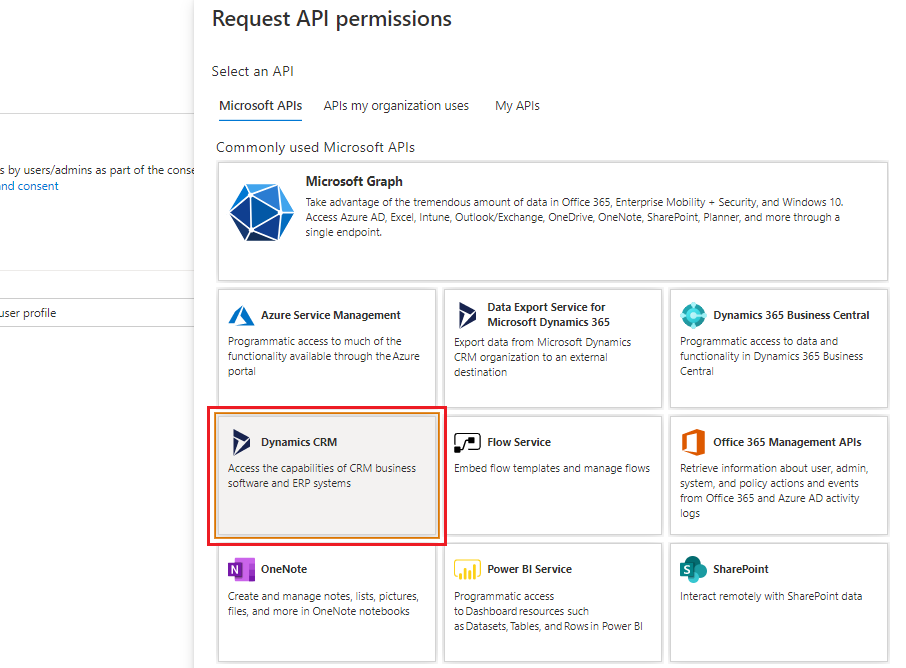

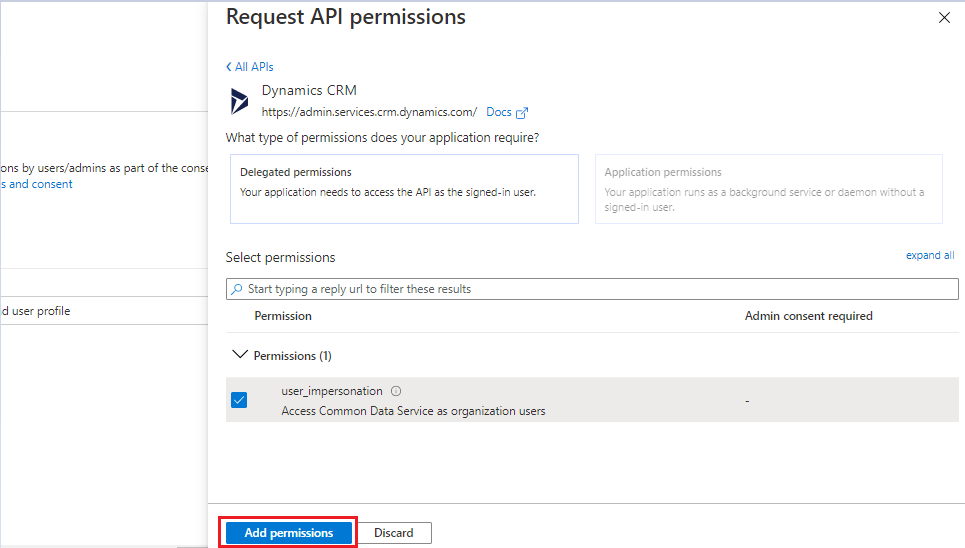

Adding Dynamics CRM permissions:

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image5.png)

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image6.png)

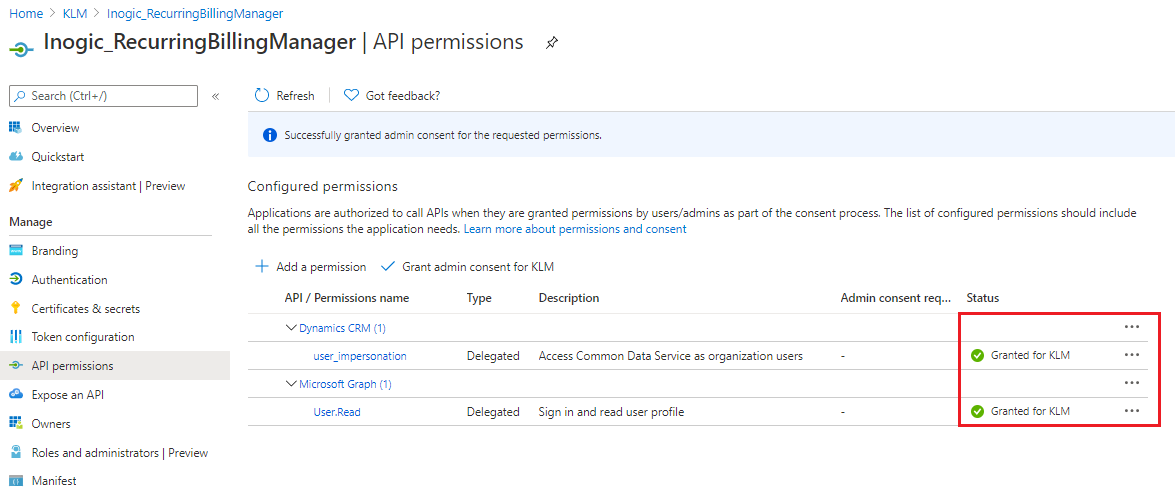

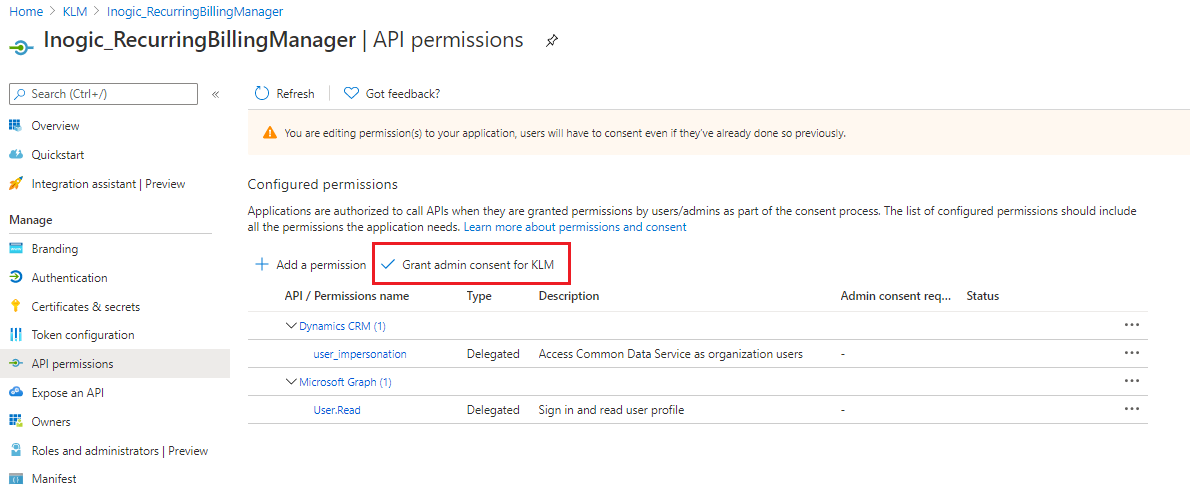

After adding permissions we need to Grant this by clicking **Grant admin consent** button.

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image7.png)

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image8.png)

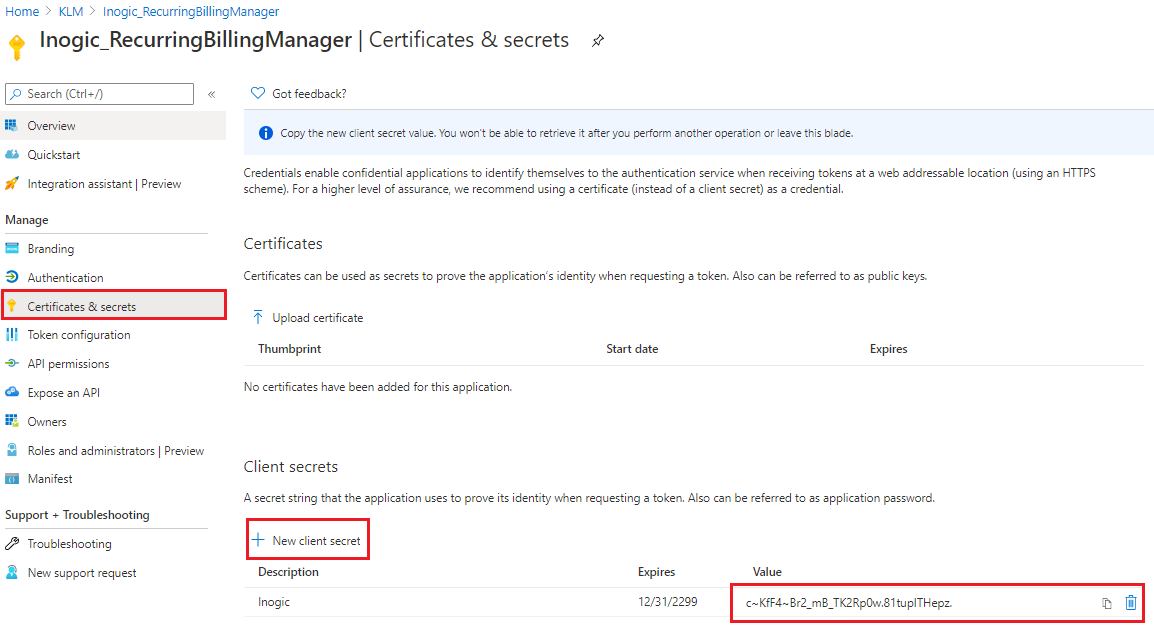

Step 5 – Now we need to create secret key. For this, navigate to Certificate & secrets and create secret key.

Please copy/paste it somewhere because after some time it will disappears.

![How to create Azure Active Directory App](https://www.inogic.com/blog/wp-content/uploads/2020/10/image9.png)

![](https://www.inogic.com/blog/wp-content/uploads/2020/10/image10.png)

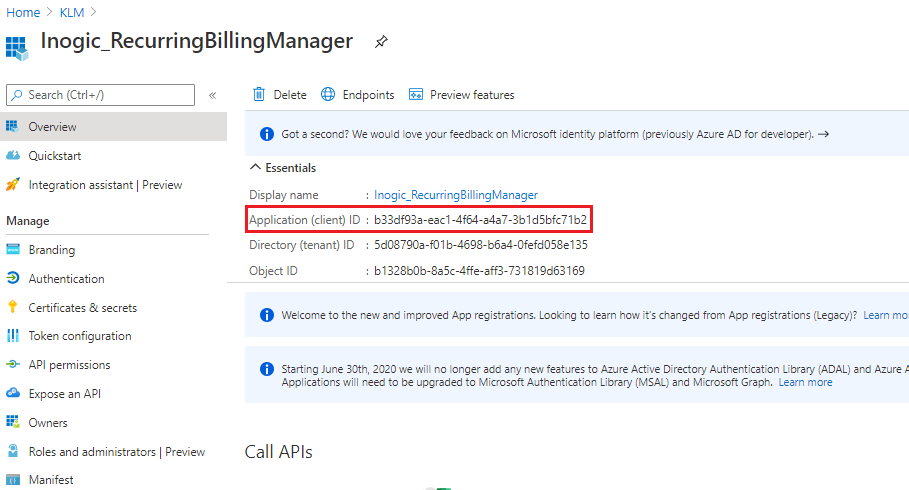

We are done with AAD app, now copy/paste your app id and secret key in connector in credentials section then you can authenticate it.
